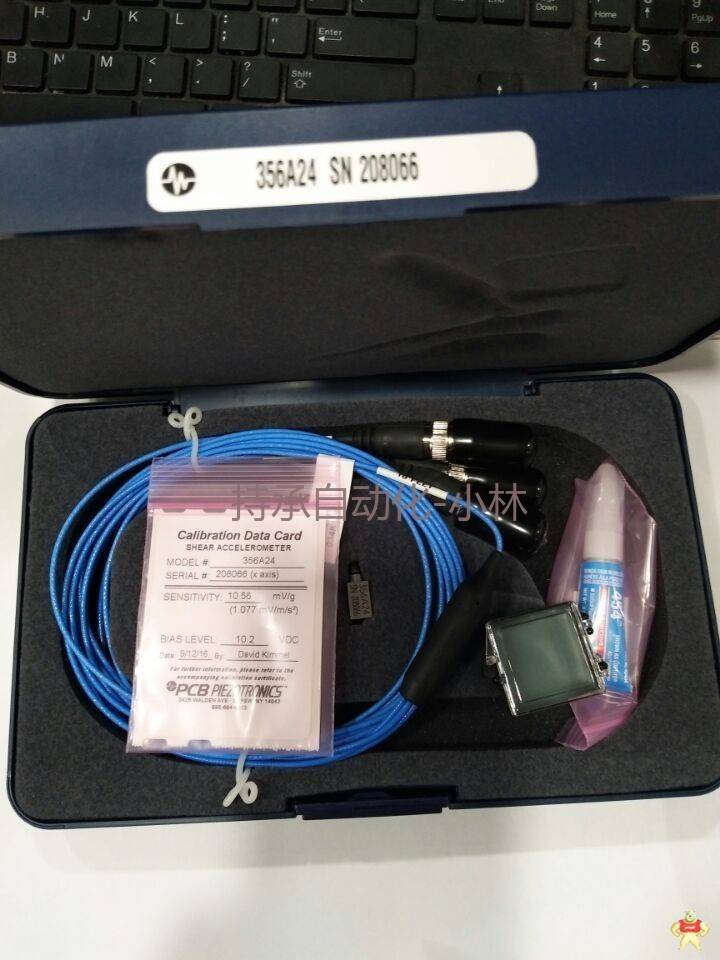

Platinum Stock Product Triaxial, lightweight miniature, ceramic shear ICP® accel., 5 mV/g, to +356 F (+180 C)

• Sensitivity: (±20%) 5 mV/g (0.51 mV/(m/s²))
• Measurement Range: ±1000 g pk (±9810 m/s² pk)
• Electrical Connector: Integral Cable

• English:	SI:
  PERFORMANCE
  Sensitivity (±20 %)	5 mV/g	0.51 mV/(m/s²)
  Measurement Range	±1000 g pk	±9810 m/s² pk
  Frequency Range (±5 %) (y or z axis)	2 to 8000 Hz	2 to 8000 Hz
  Frequency Range (±5 %) (x axis)	2 to 5000 Hz	2 to 5000 Hz
  Frequency Range (+1 dB) (x axis)	≥8 kHz	≥8 kHz
  Resonant Frequency	≥50 kHz	≥50 kHz
  Broadband Resolution (1 to 10000 Hz)	0.003 g rms	0.03 m/s² rms	[2]
  Non-Linearity	≤1 %	≤1 %	[1]
  Transverse Sensitivity	≤5 %	≤5 %
  ENVIRONMENTAL
  Overload Limit (Shock)	±10000 g pk	±98100 m/s² pk
  Temperature Range (Operating)	-65 to +356 °F	-54 to +180 °C	[3]
  Temperature Response	See Graph %/°F	See Graph %/°F	[2]
  ELECTRICAL
  Excitation Voltage	18 to 30 VDC	18 to 30 VDC
  Constant Current Excitation	2 to 4 mA	2 to 4 mA	[4]
  Output Impedance	≤200 Ohm	≤200 Ohm
  Output Bias Voltage	7 to 12 VDC	7 to 12 VDC
  Discharge Time Constant	0.24 to 1.0 sec	0.24 to 1.0 sec
  Settling Time (within 10% of bias)	<3 sec	<3 sec
  Spectral Noise (1 Hz)	1200 µg/√Hz	11772 (µm/sec2)/√Hz	[2]
  Spectral Noise (10 Hz)	300 µg/√Hz	2943 (µm/sec2)/√Hz	[2]
  Spectral Noise (100 Hz)	100 µg/√Hz	981 (µm/sec2)/√Hz	[2]
  Spectral Noise (1 kHz)	30 µg/√Hz	294 (µm/sec2)/√Hz	[2]
  PHYSICAL
  Sensing Element	Ceramic	Ceramic
  Sensing Geometry	Shear	Shear
  Housing Material	Titanium	Titanium
  Sealing	Hermetic	Hermetic
  Size - Height	0.25 in	6.35 mm
  Size - Length	0.25 in	6.35 mm
  Size - Width	0.25 in	6.35 mm
  Weight (without cable)	0.04 oz	1.0 gm	[2]
  Electrical Connector	Integral Cable	Integral Cable
  Electrical Connection Position	Side	Side
  Cable Termination	1/4-28 4-Pin Jack	1/4-28 4-Pin Jack	[3]
  Cable Length	5 ft	1.5 m
  Cable Type	034 4-cond Shielded	034 4-cond Shielded
  Mounting	Adhesive	Adhesive


  All specifications are at room temperature unless otherwise specified.

  Product Notes


  [1] Zero-based, least-squares, straight line method.
  [2] Typical.
  [3] Terminating connector limited to 325F (163C).
  [4] Increased current up to 20mA acceptable to 250F (121C)
  [5] See PCB Declaration of Conformance PS023 for details.
  Accessories:

  Supplied
  034G05	4-cond. shielded cable, 5 ft (1.5M), 4-pin plug to (3) BNC plugs	(1)
  080A109	Petro Wax	(1)
  080A90	Quick Bonding Gel	(1)
  ACS-1T	NIST traceable triaxial amplitude response, 10 Hz to upper 5% frequency.	(1)

  Optional Versions:


  (J) Ground Isolated

  	ENGLISH	SI
  Size - Width	.28 in	7.10 mm
  Size - Length	.28 in	7.10 mm
  Size - Height	.28 in	7.10 mm
  Weight	.04 oz	1.2 gm
  Electrical Isolation	>100000000 Ohm

  (W) Water Resistant Cable

  	ENGLISH	SI
  Electrical Connector	Sealed Integral Cable
