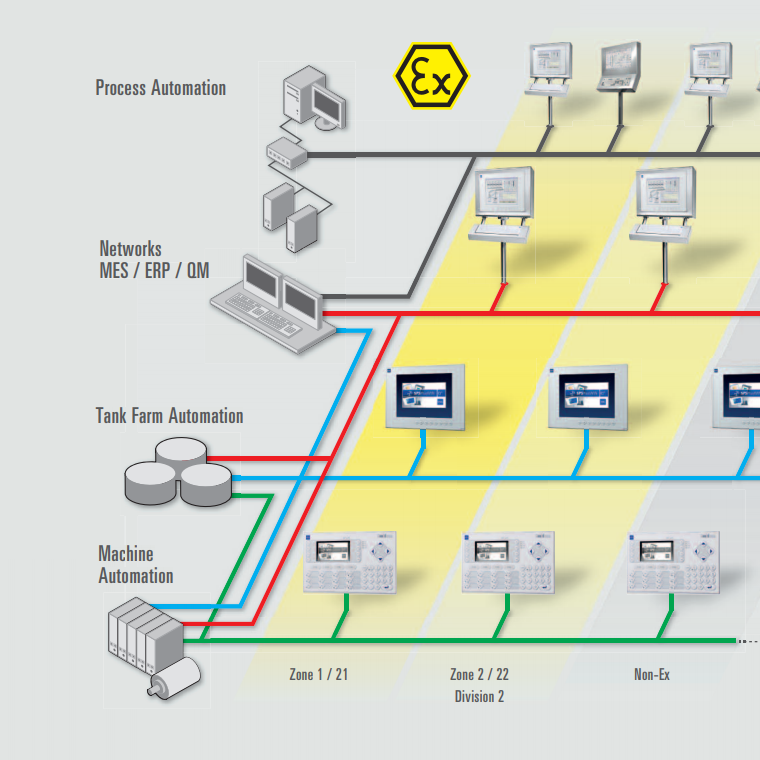

ET-436-A-FX-R2-SR-16GB-NOVPC installed in the safe area, HMI installed on-site in the hazardous area—this is the most common principle applied in the process industry. The process control system installed on the server is available on-site. The multifunctional system offers a variety of data transmission options: classic point-to-point connection over KVM box (KVM Classic IP), and with or without KVM box within the network architecture (Thin Client or KVM over IP). Advanced digital data transmission ensures optimal image quality and a variety of configurations. To save software licensing costs for example, up to 4 remote HMIs can be connected to one KVM box via Ethernet switch, and simultaneously can communicate with multiple PCs—suitable for example for production process control and simultaneous condition monitoring. Multi-monitoring with on-site terminals is as easy to realize as Thin Client server environments with virtual workstations. Data transmission is realized physically via copper cable, fiber optic or WLAN. The integrated software ensures maximum data transmission and permanent data flow control; any faults will immediately be identified and visualized. As standard, all displays (15” / 19”) are equipped with touchscreen, soft keyboard and additional function keys for individual assignment. The ET-5 / MT-5 series, its features and intelligent KVM box, not only meets, but significantly exceeds today’s requirements of remote PC terminals.ET-436-A-FX-R2-SR-16GB-NOV
T-Ex/T-Ind
T系列是为满足过程控制系统制造商对宽屏的要求而开发的
危险区域的终端。
T系列的一个特点是无与伦比的图像
质量：高品质节能LED技术与高达24英寸分辨率的全高清显示屏相结合
（1920 x 1080），长宽比为5:4/16:9和16:10。
与标准相比，节能高达50%
传统的CFL显示器，不含镉、铅和汞。
有几种功能原则：
KVM-USB-a点对点连接，也是数字连接，根据
KVM Classic-a点对点连接，也是数字连接，但
使用传统的DVI和USB连接到PC。旧的和旧的
目前的系统可在19英寸至20英寸的现场站点上运行
24英寸，分辨率为1280 x 1024至1920 x 1080（完整
高清）。
应用程序将取代标准KVM盒连接。这个
远程HMI不仅可以连接到KVM箱，还可以
也用作瘦客户机。如果需要多个远程终端，并且为了节省许可成本，可使用4个远程终端
终端可以通过以太网交换机连接到KVM盒
在所有工作站上同时显示相同的图像。
T型端子是为流程工业中先进、节能的现场操作而开发和设计的，适用于危险和安全领域
区域，如含溶剂环境、食品加工或无菌洁净室环境
